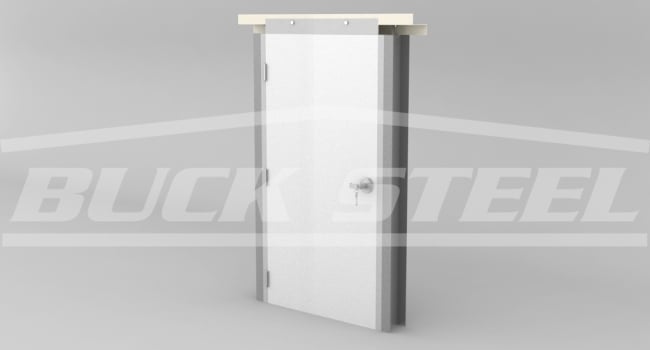

Door Options

Door Leaf: 20 gauge insulated door, A40 galvanized, heavy duty hinge reinforcements, non-handed (reversible)
Frame: 16 gauge, A40 galvanized, heavy duty hinge reinforcement, non-handed (reversible), standard profile
Sub Frame: 16 gauge, A-40 galvenel, paintable
Hardware: Extra heavy duty lever lock (LC2481 CTL 26D), latchguard, 4.5” x 4.5” BB NRP hinges 26D, threshold ADA compliant, door bottom sweep, adjustable weather seal, adjustable “L” mounting clips
Finish: White Primer

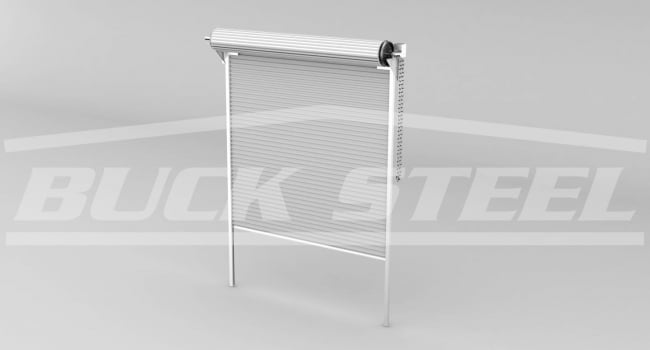

Buck Steel offers a complete line of rolling sheet doors for openings sizes up to 20' x 18'. Doors curtains are made of Grade E steel ensuring strength and durability and the siliconized polyester finish resists chalking and fading. Equipped standard with the A.C.E. (Advanced Curtain Engagement) guide system - resulting in universal mounting options, increased durability, excellent performance and ease of installation. Insulation, electric operators, and color options are available.

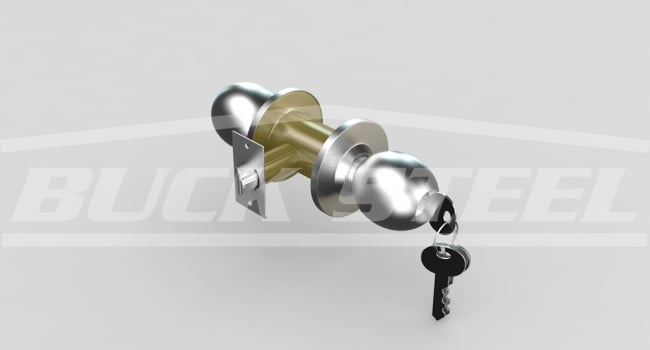

Performance: Complies with ANSI A156.2 - 2003, Series 4000, Grade 1, 800,000 cycles, UL listed for 3 hour fire door
Chassis: Cylindrical, steel - coated with zinc dichromate (corrosion resistance)
Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw
Rose: 3" diameter
Backset: 2-3/4"
Strike: Square corner 1-1/4" x 4-7/8th ANSI ASA Strike
Standard Cylinder: Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD)
Keys: Two nickel silver per lock cylinder
Door Range: 1-3/8" to 2"
Door Preparation: 2-1/8" diameter for bore, 1" diameter bore for latch bolt. Fits standard 161 door prep.

Performance: Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code, UL listed for 3 hour fire door
Chassis: Cylindrical, steel-coated w/ zinc dichronate (corrision resistance)
Lever: Non-handed
Latch: 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)
Rose: 3-1/4" diameter
Thru-bolts: Removable thru-bolts standard
Backset: 2-3/8" or 2-3/4”
Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike
Standard Cylinder: Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).
Keys: Two nickel silver per lock lock
Door Range: 1-3/8" to 2"
Door Preparation: 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.

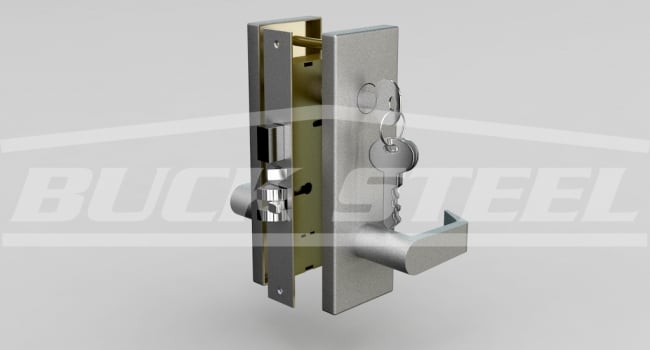

Buck Steel recommends L-Series mortise lock line of heavy duty commercial mortise lock containing a wide array of knob and lever designs. It is available in a variety of keyed and non-keyed functions, and in most popular decorative finishes. It is UL Listed and can be specified for applications in offices, schools, hospitals, hotels, commercial/industrial buildings as well as residences. The L-Series is the best choice for any building where security, safety, product life cycle, cost, and design compatibility are prime considerations.

Performance: Complies with ANSI A156.13, Series 1000, Grade 1, UL listed for 3 hour fire door. ANSI A117.1 American Disabilities Act (ADA), 1,000,000 cycles.
Chassis: Mortise, steel - coated with zinc dichromate (corrosion resistance), 13 gauge cold rolled steel
Lever: Non-handed, field reversible, solid forged brass
Trim: Roses, escutcheon, turns (solid forged brass)
Latch bolt: Latch 3/4" throw (stainless steel), deadbolt 1" throw (stainless steel), anti-friction
Backset: 2-3/4"
Strike: 4-7/8” curved strike
Door Range: 1-3/4" to 2"
Door Preparation: Per function and template
Cylinder: Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD)

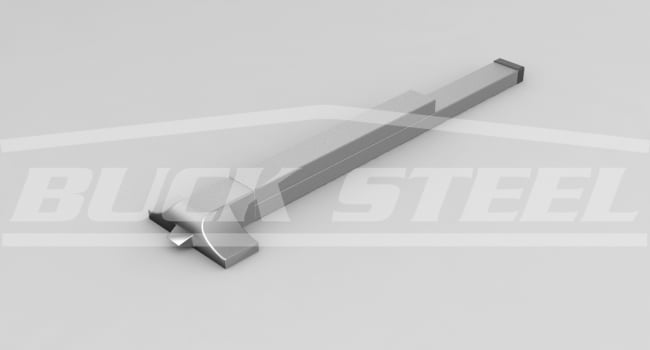

Performance: Complies with ANSI A156.3, 1994, Grade 1, UL listed
Rail: Fits 28 " to 36" doors
Latch: Stainless steel 5/8 " throw
Backset: 2-3/4"
Strikes: Adjustable with slotted holes for adjustments
Standand Cylinder: Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).
Fasteners: Accommodates wood or metal doors
Door Range: 1-3/4" to 2" thick
Door Preparation: Surface mounted

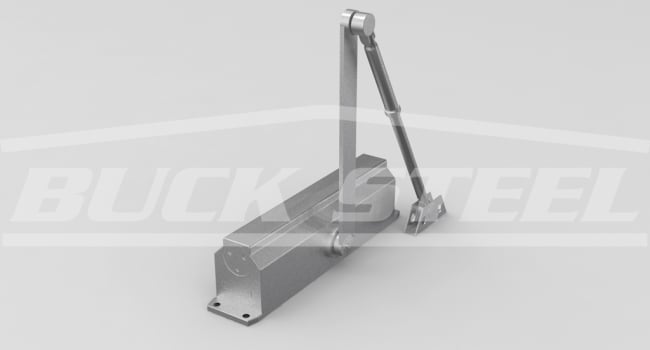

Performance: Complies with ANSI A156.4, Grade 1, 2 million cycles, UL listed
Chassis/Closer: Non-handed, cast aluminum, mounting to regular, top jamb or parallel arm applications
Main Arm: Forged steel, accommodates reveals up to 3 1/4", adjustable extension arm
Spring Power: Adjustable 1 - 4 and 3 - 6 sizes
Backcheck: Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door
Valves: Adjustable, independent, non-critical (sweep and latch), consistent closing speeds
