Metal Building Panel Types

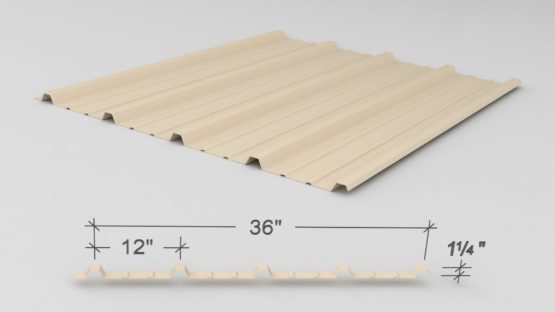

Steel building PBR roof and wall panel 3D rendering.
PBR Panel

The PBR (Purlin Bearing Rib) panel is commonly used for a wide variety of architectural, agricultural, commercial and industrial applications. PBR is a structural, exposed fastener panel that can be used for both roof and wall applications.
Coverage Width: 36"
Minimum Slope: 1/2:12
Panel Attachment: Exposed Fastening
Gauge: 26 (Std); 22, 24, 29 (Opt)
Finishes: Smooth (Std); Embossed (Opt)

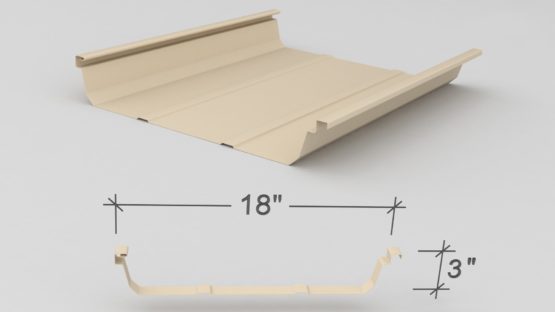

Steel building double-lok standing seam roof panel.
Double-Lok® Standing Seam

The Double-Lok® roof panel is a mechanically field-seamed, trapezoidal leg standing seam roof system. Double-Lok® panels are ideal for industrial, commercial and architectural applications and is UL-90 and FM rated with Miami-Dade County approvals.
Coverage Width: 18", 24"
Minimum Slope: 1/4:12
Panel Attachment: Concealed Fastening
Gauge: 24 (Std), 22 (Opt)
Finishes: Smooth (Std); Embossed (Opt)

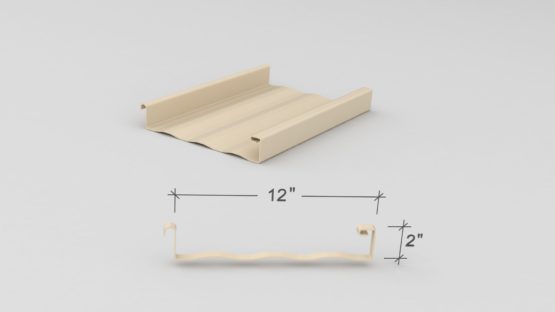

Metal building super-lok standing seam roof panel 3D rendering.
Super-Lok® Standing Seam

SuperLok® is a mechanically field-seamed, vertical leg standing seam roof system that combines a 2” tall slim rib with exceptional uplift resistance. SuperLok® has been designed to withstand the most rigorous weather conditions, can be installed directly over purlins or bar joists, and does not require a solid substructure for support.
Coverage Width: 12", 16"
Minimum Slope: 1/2:12
Panel Attachment: Concealed Fastening
Gauge: 24 (Std); 22, 26 (Opt)
Finishes: Striated (Std); Embossed (Opt)

Metal building batten-lok standing seam roof panel 3D rendering.
Batten-Lok® Standing Seam

BattenLok® HS is a mechanically field-seamed, high strength structural standing seam roof system. The BattenLok® HS panels have a 2” tall vertical seam. BattenLok® HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok® HS does not require a solid substructure for support.
Coverage Width: 12", 16"
Minimum Slope: 1/2:12
Panel Attachment: Concealed Fastening
Gauge: 24 (Std); 22 (Opt)
Finishes: Smooth or Embossed

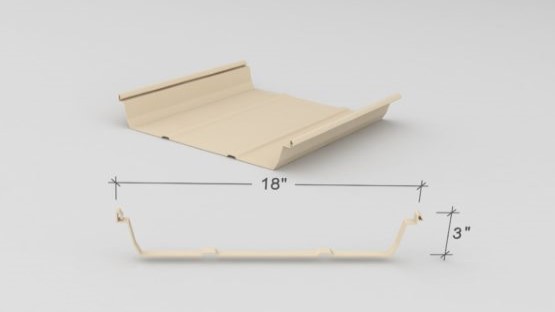

Steel building ultra-dek standing seam roof panel 3D rendering.
Ultra-Dek® Standing Seam

The Ultra-Dek® roof panel is a snap-together, trapezoidal leg, standing seam roof system that is ideal for commercial and architectural applications. Ultra-Dek®
can be erected on various types of construction.
Coverage Width: 18", 24"
Minimum Slope: 1/4:12
Panel Attachment: Concealed Fastening
Gauge: 24 (Std); 22, 26 (Opt)
Finishes: Smooth (Std); Embossed (Opt)

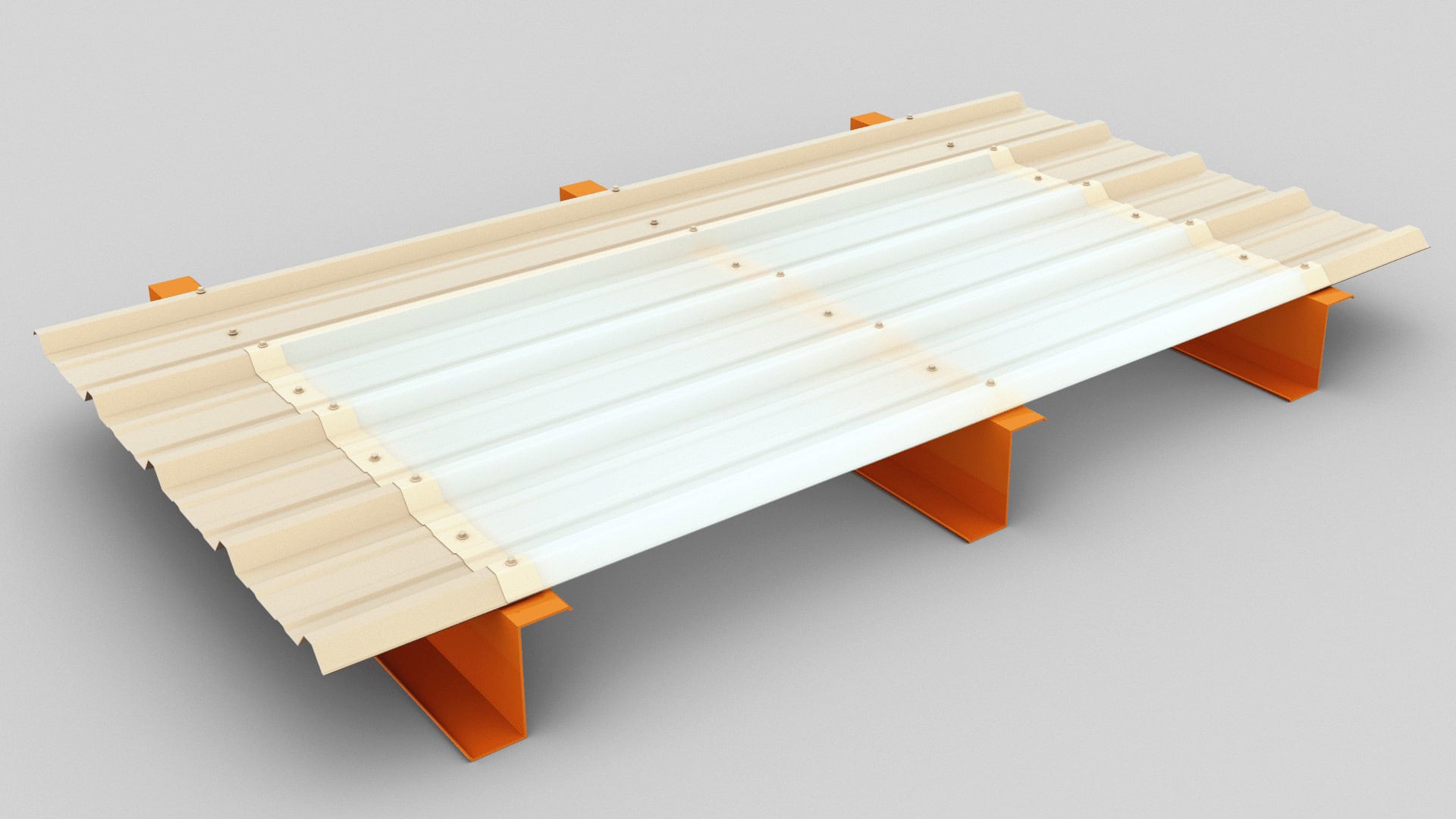

Metal building translucent light transmitting panel 3D rendering.
Light Transmitting Panel

Light transmitting panels (LTP's) are a translucent panel with a PBR panel profile LTP's can be used to replace metal roof or wall panels to supply cost effective natural light to the steel building.

LTP's are available in the following sizes: 10’-8” and 11’-0”(insulated) for roof applications and 5’-4” and 6’-9” for wall applications. Light transmitting panels do require regular maintenance (washing) in order to maintain their effectiveness over time, especially when used on the metal building roof.

Please Note: Images are displayed for presentation purposes only.
