Panel Types

Buck Steel offers a wide variety of metal panels for your metal steel building project. We offer single skin panels, insulated metal panels, stucco panels and much more. Not all panels are necessarily appropriate for all environmental conditions. Each project should be designed to conform to applicable building codes, regulations and accepted industry practices. Metal roof and siding popularity is on the rise because of energy savings, longevity and many other advantages including expanded color options long warranties.

long leg pbr panel connection

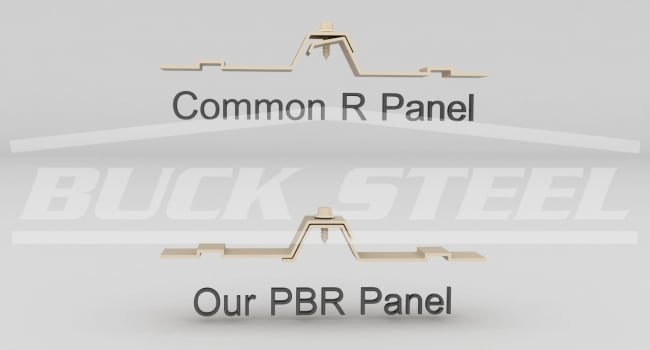

PBR Panel Connection

Standard PBR panel connection vs. Buck Steel PBR panel connection! The extra long leg on our PBR panel assures a solid, leak-proof seal.
PA01
Extra Long Leg PBR Panel Connection
pbr panel

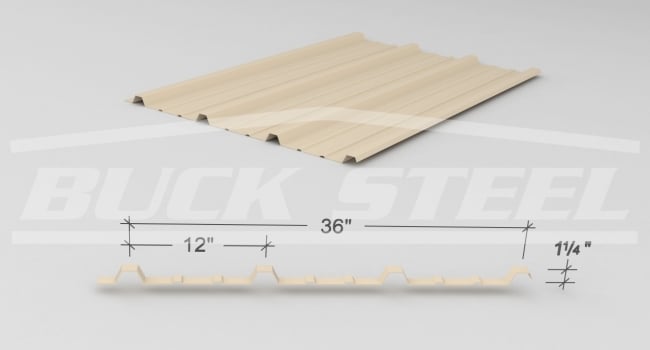

PBR Panel

The PBR (Purlin Bearing Rib) panel is commonly used for a wide variety of architectural, agricultural, commercial and industrial applications. PBR is a structural, exposed fastener panel with a minimum 70ksi tensile strength, that can be used for both roof and wall applications.
  • Coverage Width - 36"
  • Minimum Slope - 1/2:12
  • Panel Attachment - Exposed Fastening System
  • Gauge - 26 (standard); 29, 24, 22 (optional)
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300
  • Rib Spacing - 12" on center
  • Rib Height - 1-1/4"
PA02
PBR Panel
closed cell closure strip

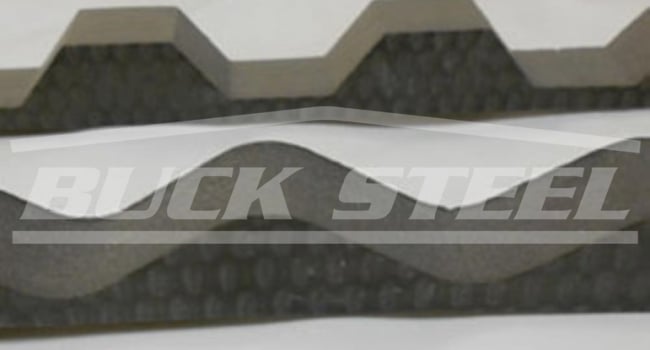

Closure Strips

Closed cell, high density, foam closure strips - in matching PBR profile - used on the base, eave, and rake are the most effective in providing a weather-tight seal. Proper installation of seals is crucial to preventing insects, rodents, and pests from entering the structure.
PA03
High Density Foam Closure Strips
pbr insulated panel eco-ficient

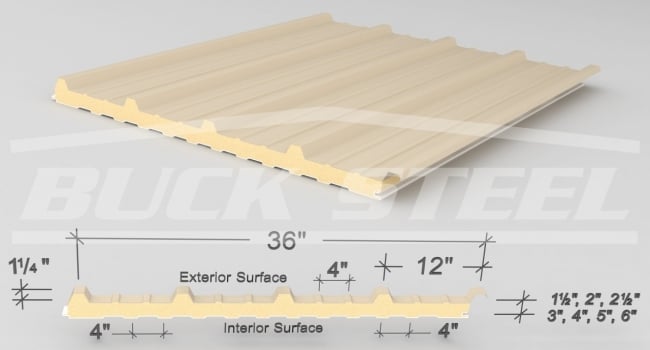

PBR Insulated Panel

MBCI’s Eco-ficient™ Insulated R Panel offers the same versatility as the single-skin PBR panel and can be used for both roof and wall applications. The Eco-ficient™ Insulated R Panel utilizes a through-fastened attachment. The standard exterior skin is smooth but can be embossed if requested. The interior skin of the Eco-ficient Insulated R Panel is roll formed with our standard stucco-embossed Mesa profile. The Insulated R Panel is ideal for commercial applications.
  • Coverage Width - 36"
  • Panel Attachment - Exposed Fastening System Panel
  • Exterior Gauges - 26, 24, 22
  • Interior Gauges - 26, 24, 22
  • Exterior Finishes - Smooth; Embossed
  • Interior Finishes - Stucco-embossed, Mesa Profile
  • Exterior Coatings - Galvalume, Signature® 200, Signature® 300, Applied Finishes (for wall applications only)
  • Interior Coatings - Igloo White (standard); Non-standard colors are also available for this panel
  • Thicknesses - 1 1/2", 2", 2 1/2", 3", 4", 5", 6"
  • Lengths - Recommended maximum is 50' Panel
  • R-Value varies up to 8.5/inch of panel thickness at 40°F mean temperature
PA04
PBR Insulated Panel
pba panel

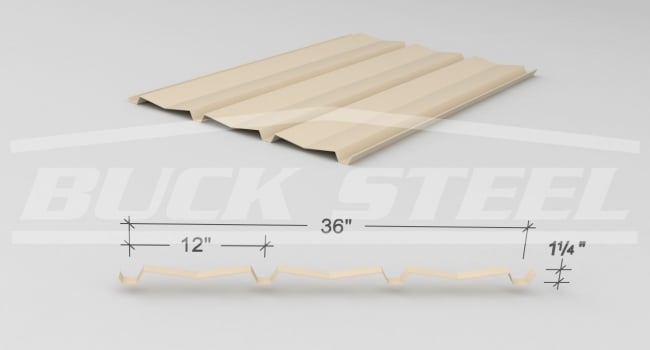

PBA Panel

The PBA panel can be used for wall applications and is striated as a standard, providing a unique design feature. The inverted ribs of the PBA panel provides for a discreet location of the exposed fasteners.
  • Coverage Width - 36"
  • Panel Attachment - Exposed Fastening System
  • Gauge - 26 (standard); 22, 24, 29 (optional)
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300
  • Rib Spacing - 12" on center
  • Rib Height - 1 1/4"
PA05
PBA Panel
corrugated metal wall panel

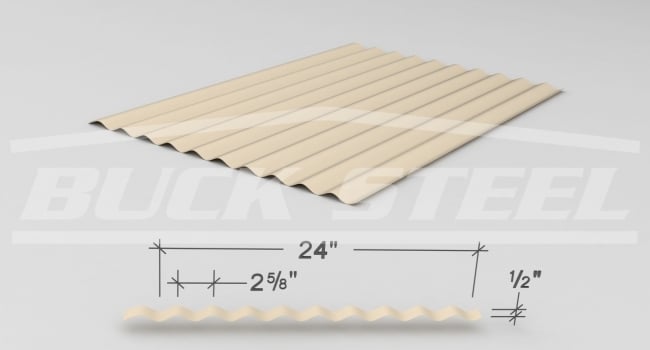

Corrugated Panel

The Corrugated metal wall panel is ideal for a variety of market places, including residential, light commercial, agricultural and storage facilities. The Corrugated metal wall panel can be used in both vertical and horizontal applications.
  • Coverage Width - 24"
  • Panel Attachment - Exposed Fastening System
  • Gauge - 29 (standard); 26 (optional)
  • Finishes - Smooth (standard)
  • Coatings - Galvalume Plus®, Signature® 200
  • Rib Spacing - 2 5/8" on center
  • Rib Height - 1/2"
PA06
Corrugated Panel
battenlok 12" roof panel

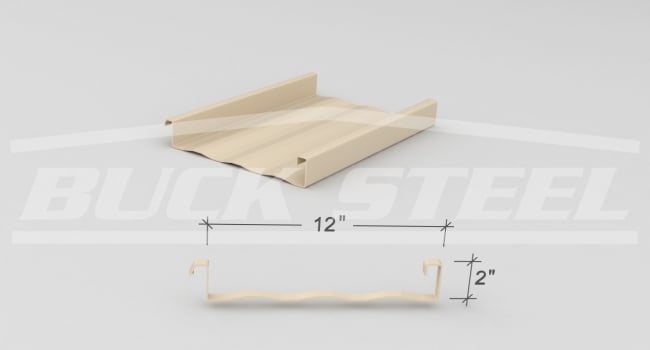

BattenLok 12" Roof Panel

BattenLok® HS is a mechanically field-seamed, high strength structural standing seam roof system. The BattenLok® HS panels have a 2” tall vertical seam and are available in both 12-inch and 16-inch widths. BattenLok® HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok® HS does not require a solid substructure for support.
  • Coverage Width - 12", 16"
  • Panel Attachment - Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)
  • Gauge - 24 (standard); 22 (optional)
  • Finishes - Smooth or Embossed; with Striations or Striations and Pencil Ribs
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA07
BattenLok 12" Roof Panel
battenlok 16" roof panel

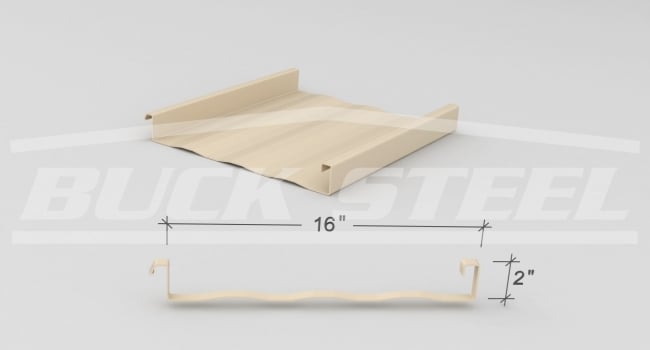

BattenLok 16" Roof Panel

BattenLok® HS is a mechanically field-seamed, high strength structural standing seam roof system. The BattenLok® HS panels have a 2” tall vertical seam and are available in both 12-inch and 16-inch widths. BattenLok® HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok® HS does not require a solid substructure for support.
  • Coverage Width - 12", 16"
  • Panel Attachment - Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)
  • Gauge - 24 (standard); 22 (optional)
  • Finishes - Smooth or Embossed; with Striations or Striations and Pencil Ribs
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA08
BattenLok 16" Roof Panel
superlok 16" roof panel

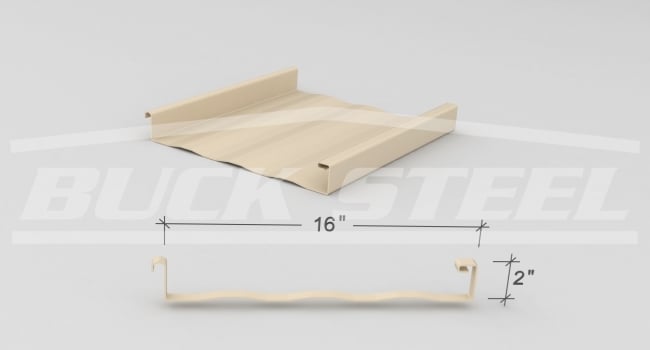

SuperLok 16" Roof Panel

SuperLok® is a mechanically field-seamed, vertical leg standing seam roof system that combines a 2” tall slim rib with exceptional uplift resistance. SuperLok® is available in both 12-inch and 16-inch widths. SuperLok® has been designed to withstand the most rigorous weather conditions. SuperLok® can be installed directly over purlins or bar joists. SuperLok® does not require a solid substructure for support.
  • Coverage Width - 12", 16"
  • Minimum Slope - 1/2:12
  • Panel Attachment - Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)
  • Gauge - 24 (standard); 26, 22 (optional)
  • Finishes - Striated (standard); Embossed Striated (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA09
SuperLok 16" Roof Panel
double-lok 12" roof panel

Double-Lok 12" Roof Panel

The Double-Lok® roof panel is a mechanically field-seamed, trapezoidal leg standing seam roof system. Double-Lok® panels are available in 12-inch, 18-inch and 24-inch widths. Double-Lok® requires a minimum slope of ¼:12 and is UL-90 and FM rated with Miami Dade County approvals.
  • Coverage Width - 12", 18", 24"
  • Minimum Slope - 1/4:12
  • Panel Attachment - Concealed Fastening System; Low, High, Fix and Sliding and a 2" stand off clip
  • Gauge - 22 and 24
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA10
Double-Lok 12" Roof Panel
double-lok 18" roof panel

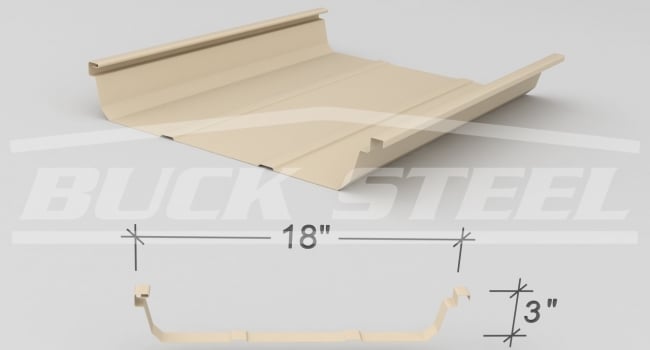

Double-Lok 18" Roof Panel

The Double-Lok® roof panel is a mechanically field-seamed, trapezoidal leg standing seam roof system. Double-Lok® panels are available in 12-inch, 18-inch and 24-inch widths. Double-Lok® requires a minimum slope of ¼:12 and is UL-90 and FM rated with Miami Dade County approvals.
  • Coverage Width - 12", 18", 24"
  • Minimum Slope - 1/4:12
  • Panel Attachment - Concealed Fastening System; Low, High, Fix and Sliding and a 2" stand off clip
  • Gauge - 22 and 24
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA11
Double-Lok 18" Roof Panel
double-lok 24" roof panel

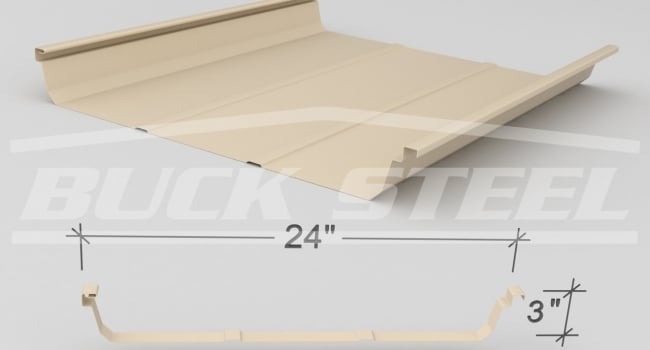

Double-Lok 24" Roof Panel

The Double-Lok® roof panel is a mechanically field-seamed, trapezoidal leg standing seam roof system. Double-Lok® panels are available in 12-inch, 18-inch and 24-inch widths. Double-Lok® requires a minimum slope of ¼:12 and is UL-90 and FM rated with Miami Dade County approvals.
  • Coverage Width - 12", 18", 24"
  • Minimum Slope - 1/4:12
  • Panel Attachment - Concealed Fastening System; Low, High, Fix and Sliding and a 2" stand off clip
  • Gauge - 22 and 24
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA12
Double-Lok 24" Roof Panel
ultra-dek 12" roof panel

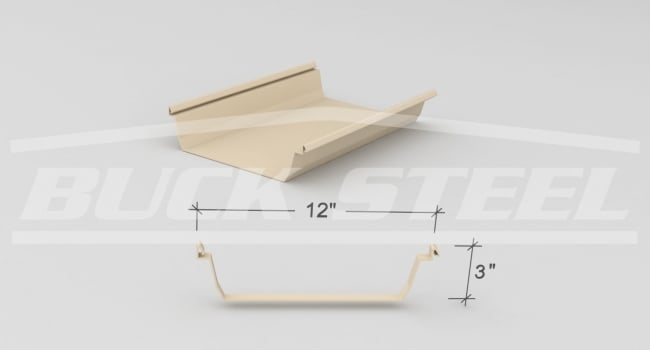

Ultra-Dek 12" Roof Panel

The Ultra-Dek® roof panel is a snap-together, trapezoidal leg, standing seam roof system that carries Air Leakage and Water Penetration testing approvals.Ultra-Dek® panels are available in 12-inch, 18-inch and 24-inch widths. Ultra-Dek® requires a minimum slope of ¼:12 and is ideal for industrial, commercial and architectural applications. Ultra-Dek® can be erected on various types of construction.
  • Coverage Width - 12", 18", 24"
  • Minimum Slope - 1/4:12
  • Panel Attachment - Concealed Fastening System; Low, High (fixed or sliding)
  • Gauge - 24 (standard); 26, 22 (optional)
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA13
Ultra-Dek 12" Roof Panel
ultra-dek 18" roof panel

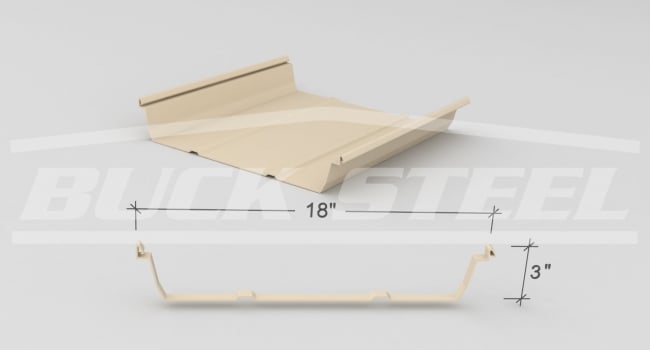

Ultra-Dek 18" Roof Panel

The Ultra-Dek® roof panel is a snap-together, trapezoidal leg, standing seam roof system that carries Air Leakage and Water Penetration testing approvals.Ultra-Dek® panels are available in 12-inch, 18-inch and 24-inch widths. Ultra-Dek® requires a minimum slope of ¼:12 and is ideal for industrial, commercial and architectural applications. Ultra-Dek® can be erected on various types of construction.
  • Coverage Width - 12", 18", 24"
  • Minimum Slope - 1/4:12
  • Panel Attachment - Concealed Fastening System; Low, High (fixed or sliding)
  • Gauge - 24 (standard); 26, 22 (optional)
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA14
Ultra-Dek 18" Roof Panel
ultra-dek 24" roof panel

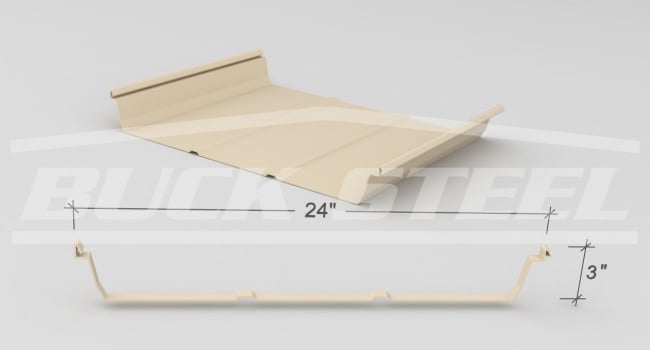

Ultra-Dek 24" Roof Panel

The Ultra-Dek® roof panel is a snap-together, trapezoidal leg, standing seam roof system that carries Air Leakage and Water Penetration testing approvals.Ultra-Dek® panels are available in 12-inch, 18-inch and 24-inch widths. Ultra-Dek® requires a minimum slope of ¼:12 and is ideal for industrial, commercial and architectural applications. Ultra-Dek® can be erected on various types of construction.
  • Coverage Width - 12", 18", 24"
  • Minimum Slope - 1/4:12
  • Panel Attachment - Concealed Fastening System; Low, High (fixed or sliding)
  • Gauge - 24 (standard); 26, 22 (optional)
  • Finishes - Smooth (standard); Embossed (optional)
  • Coatings - Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
PA15
Ultra-Dek 24" Roof Panel
strukturoc pre-stucco panel

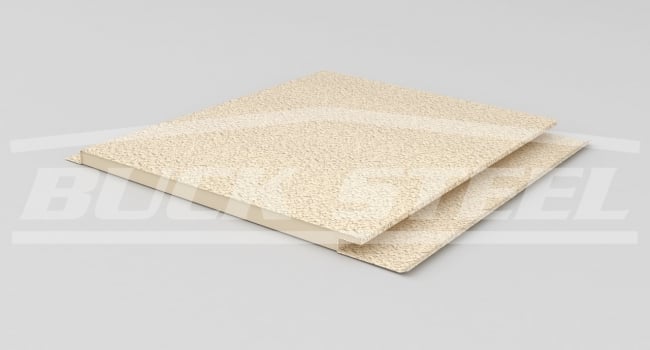

Strukturoc Pre-Stucco Panel

Texture and embossed wall panel systems are available in multiple specifications, offering superior functionality for a wide variety of commercial designs. The panels may be used in both vertical and horizontal applications. The panel is universal in design, being used as wall,fasica and soffit panels. Other uses include fencing, ceilings and screening.

• Coverage Width: 16” Face (18.95” O.A.)
• Panel Thickness: 7/8”
• Panel Attachment: T&G w/Clips, Hidden Fasteners
• Metal Gauge: 20 gauge
• Finishes: Proprietary Marble Crush
PA16
Strukturoc Pre-Stucco Panel
metal building light transmitting panel

Light Transmitting Panel

Light transmitting panels (commonly referred to as LTP's) are a translucent panel with the same profile as the PBR roof and wall panels. LTP's can be strategically placed in the roof or walls and replace metal roof or wall panel sheets to supply cost effective natural light to the steel building. LTP's are available in the following sizes: 10’-8” and 11’-0”(insulated) for roof applications and 5’-4” and 6’-9” for wall applications.
PA17
Light Transmitting Panel
